25889 | HELUKABEL

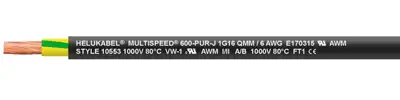

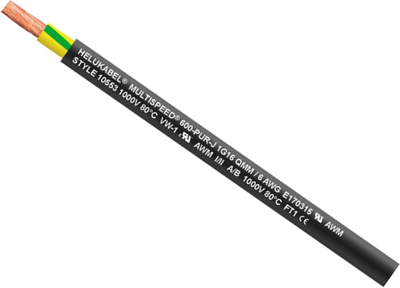

Polypropylene-drag chains conductor line, halogen free, MULTISPEED-600-PUR-J, 10 mm², AWG 8, black, outer Ø 8.2 mm, 25889
Unit Price (€ / mtr.)
8.1039 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single core cable cable, 25889, HELUKABEL
This special drag chain cable permits extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and with high speeds in dry, moist and wet environments as well as for outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | polypropylene | |
| AWG cross-section | AWG 8 | |
| Cable material | copper, bright | |
| Colour | black | |
| Cable cross-section | 10 mm² | |
| Temperature range (active) | -30 °C to 80 °C | |
| Rated voltage U0 | 600 V | |
| Material | PUR | |
| Halogen free | Yes | |
| Rated voltage | 1000 V | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 3 kV | |
| Outer diameter | 8.2 mm | |
| Product type | drag chains conductor line | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
