25888 | HELUKABEL

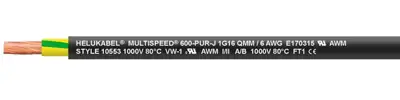

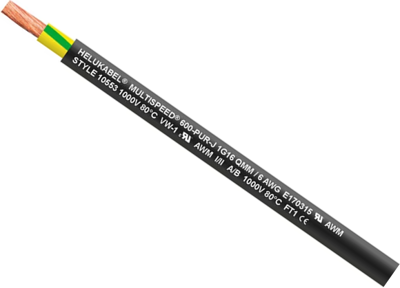

Polypropylene-drag chains conductor line, halogen free, MULTISPEED-600-PUR-J, 6.0 mm², black, 25888
Unit Price (€ / mtr.)
5.2241 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single core cable cable, 25888, HELUKABEL
This special drag chain cable permits extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and with high speeds in dry, moist and wet environments as well as for outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Test voltage | 3 kV | |
| Product type | drag chains conductor line | |
| Temperature range (active) | -30 °C to 80 °C | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, bright | |
| Conductor category | CL.6 = finest stranded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Cable cross-section | 6.0 mm² | |
| Material | PUR | |
| Rated voltage | 1000 V | |
| Colour | black | |
| Halogen free | Yes | |
| Core insulation material | polypropylene |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
