23149 | HELUKABEL

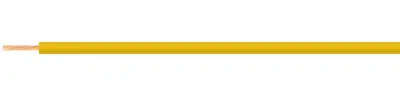

Fluorescent tube cable 1.5 mm² yellow 7.5 kV

Order No.: 93F6354
EAN: 4060892238628
MPN:
23149
23149 HELUKABEL High-voltage Cables
Image may differ
Unit Price (€ / mtr.)
3.7128 € *
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
371.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
3.7128 €

Light tube cable, 23149, HELUKABEL

This ignition cable is suitable for use at high and extremely alternating ambient temperatures up to +180°C. Applications include the lamp and lighting industry and cooling and airconditioning technology.

Features

  • Halogen-free acc. to DIN VDE 0482 part 267, DIN EN 50267-2-2, IEC 60754-2
  • No formation of corrosive gases
  • Low smoke density
  • Very good weather resistance
Technical specifications
Filter Property Value
Halogen free Yes
Colour yellow
Test voltage 10 kV
Cable cross-section 1.5 mm²
Outer diameter 7.6 mm
Material silicone
Rated voltage 7.5 kV
Cable material Cu conductor tin plated
Logistics
Property Value
Customs tariff number 85446010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
