82839 | HELUKABEL
PUR ethernet cable, Cat 5e, 8-wire, 0.15 mm², AWG 26/19, green, 82839
Order No.: 93F7712
EAN: 4060892309700
MPN:
82839
Unit Price (€ / mtr.)
6.9020 € *
Standard delivery time from the manufacturer is: 6 Weeks

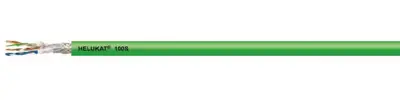

Ethernet cable, 82839, HELUKABEL
This product is designed for use in cable carriers and the recurring loads caused by moving machine components. Thanks to the PUR sheath, it also offers excellent resistance to common mineral oils, greases and cooling lubricants.
Features
- Abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- Halogen-free
- Flame-retardant
- Suitable for use in drag chains
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.6 mm | |
| Version | ethernet cable | |
| Core insulation material | polyolefine | |
| Halogen free | Yes | |
| Category | Cat 5e | |
| Cable cross-section | 0.15 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Colour | green | |
| Material | PUR | |
| Number of cores | 8 | |
| AWG cross-section | AWG 26/19 | |
| Temperature range (active) | -30 °C to 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
