805614 | HELUKABEL

PUR ethernet cable, Cat 7, 8-wire, 0.22 mm², AWG 24/7, green, 805614

Order No.: 93F7714
EAN: 4060892309793
MPN:
805614

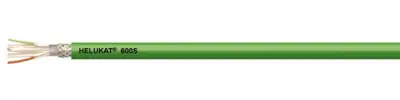

805614 HELUKABEL Data Cables Image 1
805614 HELUKABEL Data Cables Image 2
Image may differ
Unit Price (€ / mtr.)
26.7988 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2,679.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
26.7988 €

Ethernet cable, 805614, HELUKABEL

This product is designed for use in cable carriers and the recurring loads caused by moving machine components. It provides excellent transmission characteristics under extremely difficult conditions.

Features

  • Abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
  • Halogen-free
  • Flame-retardant
  • Suitable for use in drag chains
Technical specifications
Filter Property Value
Material PUR
Cable material copper, tin-plated
Version ethernet cable
Number of cores 8
Shielding shielded
Core insulation material PE
Cable cross-section 0.22 mm²
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -30 °C to 70 °C
Drag chain suitable Yes
Outer diameter 8.7 mm
Colour green
Category Cat 7
Halogen free Yes
AWG cross-section AWG 24/7
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
