80294 | HELUKABEL

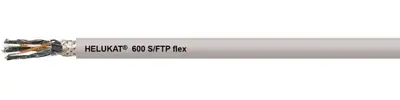

FRNC data cable, 8-wire, AWG 26/7, gray, 80294
Unit Price (€ / mtr.)
3.5343 € *
Standard delivery time from the manufacturer is: 6 Weeks
LAN Cable, 80294, HELUKABEL
This data cable is used in the tertiary level of a network as patch cables and connection cables. It is characterized by large performance reserves and outstanding performance. It can be used to implement services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI, token ring 4/16 Mbit/s or ISDN absolutely trouble-free.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | data cable | |
| Number of cores | 8 | |
| AWG cross-section | AWG 26/7 | |
| Outer diameter | 5.9 mm | |
| Colour | gray | |
| Material | FRNC | |
| Cable material | copper, bright | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -20 °C to 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444920 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
