802469 | HELUKABEL
PUR bus line, 4-wire, AWG 28 + AWG 20, purple, 802469
Order No.: 93F9055
EAN: 4060892315541
MPN:
802469
Unit Price (€ / mtr.)
25.823 € *
Standard delivery time from the manufacturer is: 6 Weeks

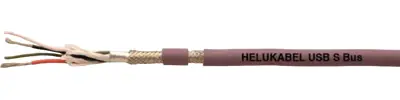

BUS cable, 802469, HELUKABEL
USB BUS S is designed for continous moving in cable carriers and lengths up to max. 5m. Thanks to the PUR sheath, it also offers excellent resistance to common mineral oils, greases and cooling lubricants.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bus line | |
| Number of cores | 4 | |
| AWG cross-section | AWG 28 + AWG 20 | |
| Outer diameter | 5 mm | |
| Colour | purple | |
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Core insulation material | PP | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Drag chain suitable | Yes | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
