801659 | HELUKABEL
PUR data cable, profibus, 2-wire, 0.65 mm², AWG 24/19, purple, 801659
Unit Price (€ / mtr.)
10.0912 € *
Standard delivery time from the manufacturer is: 6 Weeks

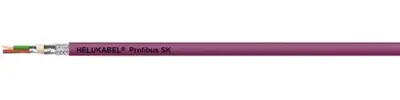

Profibus SK drag chain, 801659, HELUKABEL
Profibus SK drag chain is designed for continous motion in cable carriers and has a special structure for processing with the Fast Connect Stripping Tool from Siemens. Thanks to the PU sheath, it also offers excellent resistance to common mineral oils, greases and cooling lubricants.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | data cable | |
| Number of cores | 2 | |
| Cable cross-section | 0.65 mm² | |
| AWG cross-section | AWG 24/19 | |
| Outer diameter | 8 mm | |
| Bussystem | profibus | |
| Colour | purple | |
| Material | PUR | |
| Cable material | copper, bright | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | No | |
| Drag chain suitable | Yes | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
