800653 | HELUKABEL
PVC data cable, Cat 5e, PROFINET, 4-wire, 0.32 mm², AWG 22/1, green, 800653
Order No.: 93F7666
EAN: 4060892314308
MPN:
800653
Unit Price (€ / mtr.)
4.1055 € *
Available in 5 Days: 100 mtr. - if ordered today

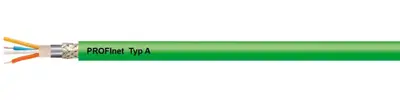

Ethernet cable, 800653, HELUKABEL
This product is suitable for fixed installation in industrial networks, rugged. It guarantees excellent transmission characteristics and may be used even under the harshest conditions.
Features
- Resistant to: oil, UV radiation, weathering effects, microbes
- Highly flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | data cable | |
| Number of cores | 4 | |
| Cable cross-section | 0.32 mm² | |
| AWG cross-section | AWG 22/1 | |
| Outer diameter | 6.5 mm | |
| Bussystem | PROFINET | |
| Category | Cat 5e | |
| Colour | green | |
| Material | PVC | |
| Cable material | copper, bright | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | No | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -20 °C to 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444991 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
