800648 | HELUKABEL
PVC data cable, profibus, 2-wire, 0.64 mm², AWG 24/7, purple, 800648
Unit Price (€ / mtr.)
2.9988 € *
Available: 103 mtr.

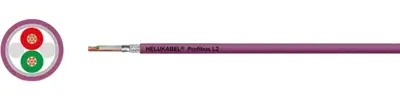

Profibus cable, 800648, HELUKABEL
Profibus L2 7-wire for mobile applications in Profibus industrial networks. With its core design and the special PVC sheath, the type described here is suitable for normal mobile applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24/7 | |
| Colour | purple | |
| Core insulation material | PE | |
| Drag chain suitable | No | |
| Halogen free | No | |
| Cable cross-section | 0.64 mm² | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Number of cores | 2 | |
| Outer diameter | 7.8 mm | |
| Material | PVC | |
| Version | data cable | |
| Bussystem | profibus | |
| Cable material | copper, bright | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
