49827 | HELUKABEL
PUR data cable, 18-wire, 0.34 mm², AWG 22, gray, 49827
Unit Price (€ / mtr.)
11.6263 € *
Standard delivery time from the manufacturer is: 6 Weeks

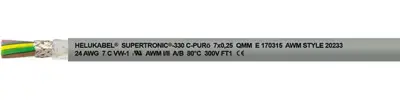

Drag chain cable, 49827, HELUKABEL
The 49827 is a PUR drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent and fast lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. A long service life guarantees reliable function and high efficiency. The high screening density ensures interference-free transmission of signals or pulses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 9.8 mm | |
| Version | data cable | |
| Core insulation material | PP | |
| Halogen free | Yes | |
| Cable cross-section | 0.34 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Colour | gray | |
| Material | PUR | |
| Number of cores | 18 | |
| AWG cross-section | AWG 22 | |
| Temperature range (active) | -30 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
