49821 | HELUKABEL
PUR data cable, 4-wire, 0.34 mm², AWG 22, gray, 49821
Unit Price (€ / mtr.)
4.8909 € *
Available in 5 Days: 1,000 mtr. - if ordered today

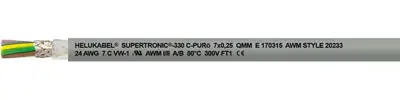

Drag chain cable, 49821, HELUKABEL
The 49821 is a PUR drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent and fast lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. A long service life guarantees reliable function and high efficiency. The high screening density ensures interference-free transmission of signals or pulses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Shielding | shielded | |
| Colour | gray | |
| Drag chain suitable | Yes | |
| Outer diameter | 5.7 mm | |
| Core insulation material | PP | |
| Temperature range (active) | -30 °C to 80 °C | |
| Number of cores | 4 | |
| Cable material | copper, bright | |
| AWG cross-section | AWG 22 | |
| Material | PUR | |
| Version | data cable | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Cable cross-section | 0.34 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
