49819 | HELUKABEL
PUR data cable, 2-wire, 0.34 mm², AWG 22, gray, 49819
Unit Price (€ / mtr.)
4.9028 € *
Standard delivery time from the manufacturer is: 6 Weeks

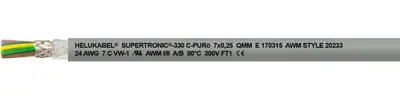

Drag chain cable, 49819, HELUKABEL
The 49819 is a PUR drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent and fast lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. A long service life guarantees reliable function and high efficiency. The high screening density ensures interference-free transmission of signals or pulses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Version | data cable | |
| Cable cross-section | 0.34 mm² | |
| Number of cores | 2 | |
| Cable material | copper, bright | |
| Halogen free | Yes | |
| Temperature range (active) | -30 °C to 80 °C | |
| Material | PUR | |
| Shielding | shielded | |
| Outer diameter | 5.1 mm | |
| Core insulation material | PP | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 22 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
