49810 | HELUKABEL

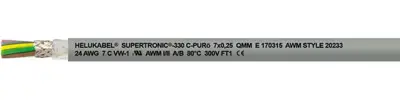

PUR data cable, 4-wire, 0.25 mm², AWG 24, gray, 49810
Unit Price (€ / mtr.)
4.0341 € *
Standard delivery time from the manufacturer is: 6 Weeks
Drag chain cable, 49810, HELUKABEL
The 49810 is a PUR drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent and fast lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. A long service life guarantees reliable function and high efficiency. The high screening density ensures interference-free transmission of signals or pulses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 | |
| Core insulation material | PP | |
| Temperature range (active) | -30 °C to 80 °C | |
| Colour | gray | |
| Halogen free | Yes | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Outer diameter | 5.3 mm | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Material | PUR | |
| Drag chain suitable | Yes | |
| Version | data cable | |
| Cable material | copper, bright | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
