48505 | HELUKABEL

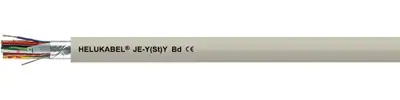

PVC data cable, 32-wire, 0.8 mm², gray, 48505

Order No.: 93F6688
EAN: 4060892096952
MPN:
48505
Series: JE-Y(St)Y
48505 HELUKABEL Data Cables
Image may differ
Unit Price (€ / mtr.)
4.9623 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
496.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
4.9623 €

Data cable, 48505, HELUKABEL

The 48505 is a data cable suitable for transmission of signals and measurements in the symmetric circuits of the control and regulation technology, and for the transmission of data and process information in computer systems. Used in dry and damp premises, and in or under plaster in the open air for fixed installation. Also installation cable is not allowed for purposes of high current and power or burial installation.

Technical specifications
Core insulation material PVC
Colour gray
Number of cores 32
Outer diameter 13.5 mm
Drag chain suitable No
Halogen free No
Cable cross-section 0.8 mm²
Version data cable
Material PVC
Cable material copper, bright
Shielding shielded
Temperature range (unmoved) -30 °C to 70 °C
Temperature range (active) -5 °C to 50 °C
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
