48502 | HELUKABEL
PVC data cable, 8-wire, 0.8 mm², gray, 48502
Unit Price (€ / mtr.)
1.6184 € *
Standard delivery time from the manufacturer is: 6 Weeks

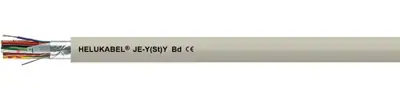

Data cable, 48502, HELUKABEL
The 48502 is a data cable suitable for transmission of signals and measurements in the symmetric circuits of the control and regulation technology, and for the transmission of data and process information in computer systems. Used in dry and damp premises, and in or under plaster in the open air for fixed installation. Also installation cable is not allowed for purposes of high current and power or burial installation.
Technical specifications
Filter | Property | Value |
---|---|---|
Temperature range (unmoved) | -30 °C to 70 °C | |
Colour | gray | |
Number of cores | 8 | |
Version | data cable | |
Cable material | copper, bright | |
Shielding | shielded | |
Core insulation material | PVC | |
Material | PVC | |
Halogen free | No | |
Outer diameter | 8.3 mm | |
Drag chain suitable | No | |
Cable cross-section | 0.8 mm² | |
Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
Property | Value |
---|---|
Customs tariff number | 85444995 |
Compliance
Property | Value |
---|---|
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
