43555 | HELUKABEL
PVC data cable, 10-wire, 0.5 mm², AWG 20, gray, 43555
Unit Price (€ / mtr.)
4.8433 € *
Standard delivery time from the manufacturer is: 6 Weeks

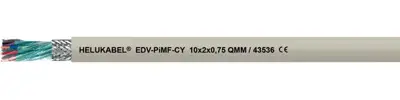

Data cable, 43555, HELUKABEL
The 43555 is a data cable with overall pair screening and low capacities for installed terminals in medical and data technology. Application is also suitable in tool and machine construction, rolling mills and smelters, as well as traffic and process technology. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | data cable | |
| Number of cores | 10 | |
| Shielding | shielded | |
| Core insulation material | PE | |
| Cable cross-section | 0.5 mm² | |
| Temperature range (unmoved) | -20 °C to 80 °C | |
| Temperature range (active) | -5 °C to 80 °C | |
| Drag chain suitable | No | |
| Outer diameter | 12.2 mm | |
| Colour | gray | |
| Halogen free | No | |
| AWG cross-section | AWG 20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
