34352 | HELUKABEL

Polymer data cable, 16-wire, 0.5 mm², AWG 20, gray, 34352

Order No.: 93F6684
EAN: 4060892100116
MPN:
34352
Series: JE-LiHCH Bd
34352 HELUKABEL Data Cables
Image may differ
Unit Price (€ / mtr.)
6.7949 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
679.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
6.7949 €

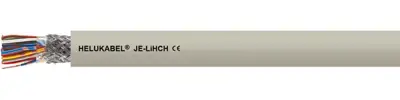

Data cable, 34352, HELUKABEL

The 34352 is a halogen-free installation cable with improved characteristics in the case of fire are used for telephone transmission, measuring and signal purposes. The copper screened design (C) protects the transmission circuits against electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. It is preferably used for telecommunication installations inside buildings. This cable is suitable for fixed installation in areas with danger of fire, in dry and damp environments as well as in and under plaster. Installation cable is not allowed for purposes of high current and power or burial installation.

Technical specifications
Filter Property Value
Material polymer
Cable material copper, bright
Version data cable
Number of cores 16
Shielding shielded
Core insulation material polymer
Cable cross-section 0.5 mm²
Temperature range (unmoved) -30 °C to 70 °C
Temperature range (active) -5 °C to 50 °C
Drag chain suitable No
Outer diameter 12.9 mm
Colour gray
Halogen free Yes
AWG cross-section AWG 20
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
