34351 | HELUKABEL
Polymer data cable, 8-wire, 0.5 mm², AWG 20, gray, 34351
Unit Price (€ / mtr.)
3.9032 € *
Standard delivery time from the manufacturer is: 6 Weeks

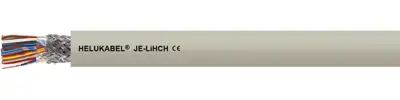

Data cable, 34351, HELUKABEL
The 34351 is a halogen-free installation cable with improved characteristics in the case of fire are used for telephone transmission, measuring and signal purposes. The copper screened design (C) protects the transmission circuits against electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. It is preferably used for telecommunication installations inside buildings. This cable is suitable for fixed installation in areas with danger of fire, in dry and damp environments as well as in and under plaster. Installation cable is not allowed for purposes of high current and power or burial installation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | polymer | |
| Cable material | copper, bright | |
| Version | data cable | |
| Number of cores | 8 | |
| Shielding | shielded | |
| Core insulation material | polymer | |
| Cable cross-section | 0.5 mm² | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C | |
| Drag chain suitable | No | |
| Outer diameter | 8.7 mm | |
| Colour | gray | |
| Halogen free | Yes | |
| AWG cross-section | AWG 20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
