21343 | HELUKABEL

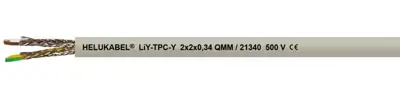

PVC data cable, 10-wire, 0.34 mm², AWG 22, gray, 21343
Unit Price (€ / mtr.)
6.545 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 21343, HELUKABEL
The pair screened data transmission cable is used as a control and signal cable in electronics and in measurement and control technology. It provides interference-free transmission of data signals from peripheral equipment to information storage. Excellent connection cable for sound mixers, studio equipment and measurement and control technology. Reliable in process control, machining centres and safety engineering systems. This cable with copper screening is ideally suited for interefence-free data and signal transmission for measurement and control technology.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 | |
| Colour | gray | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Drag chain suitable | No | |
| Halogen free | No | |
| Cable cross-section | 0.34 mm² | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 10 | |
| Outer diameter | 9.5 mm | |
| Material | PVC | |
| Version | data cable | |
| Cable material | copper, bright | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
