20202 | HELUKABEL

Polymer data cable, 16-wire, 0.5 mm², AWG 20, gray, 20202

Order No.: 93F6830
EAN: 4060892101588
MPN:
20202
Series: RD-H(St)H
20202 HELUKABEL Data Cables
Image may differ
Unit Price (€ / mtr.)
4.6172 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
461.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
4.6172 €

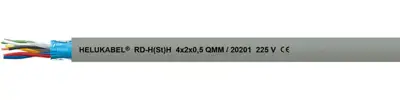

Data cable, 20202, HELUKABEL

The 20202 is a halogen-free data transmission cable used in measurement and control technology for the transmission of digital and analogue signals up to a frequency of 10 kHz. This cable is used inside buildings and outdoors, however, not without UV protection.

Technical specifications
Filter Property Value
Colour gray
Outer diameter 11.6 mm
Drag chain suitable No
AWG cross-section AWG 20
Number of cores 16
Core insulation material polymer
Temperature range (unmoved) -30 °C to 70 °C
Halogen free Yes
Material polymer
Cable material copper, bright
Version data cable
Shielding shielded
Cable cross-section 0.5 mm²
Temperature range (active) -5 °C to 50 °C
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
