20201 | HELUKABEL

Polymer data cable, 8-wire, 0.5 mm², AWG 20, gray, 20201

Order No.: 93F6829
EAN: 4060892101571
MPN:
20201
Series: RD-H(St)H
20201 HELUKABEL Data Cables

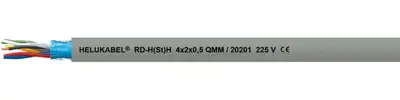

Image may differ
Unit Price (€ / mtr.)
2.499 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
249.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
2.499 €

Data cable, 20201, HELUKABEL

The 20201 is a halogen-free data transmission cable used in measurement and control technology for the transmission of digital and analogue signals up to a frequency of 10 kHz. This cable is used inside buildings and outdoors, however, not without UV protection.

Technical specifications
Filter Property Value
Material polymer
Cable material copper, bright
Version data cable
Number of cores 8
Shielding shielded
Core insulation material polymer
Cable cross-section 0.5 mm²
Temperature range (unmoved) -30 °C to 70 °C
Temperature range (active) -5 °C to 50 °C
Drag chain suitable No
Outer diameter 9 mm
Colour gray
Halogen free Yes
AWG cross-section AWG 20
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
