20141 | HELUKABEL

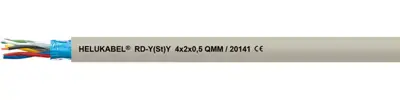

PVC data cable, 8-wire, 0.5 mm², AWG 20, gray, 20141
Unit Price (€ / mtr.)
2.8203 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 20141, HELUKABEL
This RD data transmission cable is used in measurement and control technology, as well as in control stations of industrial plants. The cable is used for the transmission of analogue and digital signals up to a frequency of approximately 10 kHz. Also is suitable for fixed installations inside buildings.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | gray | |
| Cable cross-section | 0.5 mm² | |
| Outer diameter | 8.3 mm | |
| Version | data cable | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 50 °C | |
| AWG cross-section | AWG 20 | |
| Number of cores | 8 | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Core insulation material | PVC | |
| Drag chain suitable | No | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
