17026 | HELUKABEL

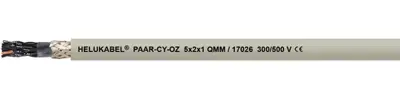

PVC data cable, 10-wire, 1.0 mm², AWG 18, gray, 17026
Unit Price (€ / mtr.)
4.9385 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 17026, HELUKABEL
The 17026 is a data cable suitable for flexible applications with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use. Used as a connection cable for signal, measurement and control technology, as well as in electronic engineering. Also applicable in pulse and data technology. Special areas of application include locations with high electromagnetic radiation, e.g. through adjacent lines.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 | |
| Number of cores | 10 | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Version | data cable | |
| Drag chain suitable | No | |
| Material | PVC | |
| Shielding | shielded | |
| Temperature range (active) | -15 °C to 80 °C | |
| Cable material | copper, bright | |
| Core insulation material | PVC | |
| Colour | gray | |
| Cable cross-section | 1.0 mm² | |
| Outer diameter | 12.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
