15989 | HELUKABEL

PVC data cable, 8-wire, 0.2 mm², AWG 25, gray, 15989

Order No.: 93F6730
EAN: 4060892090578
MPN:
15989
Series: LifYCY
15989 HELUKABEL Data Cables

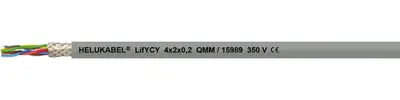

Image may differ
Unit Price (€ / mtr.)
2.9036 € *
Available in 5 Days: 1,700 mtr. - if ordered today
Total Price:
290.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
2.9036 €

Data cable, 15989, HELUKABEL

This cable is used as a connection cable for signal, measurement and control technology, e.g. for call and intercom systems, electronic weighing equipment, office machines, computing and telecommunication systems etc. It enables extremely flexible handling and laying. The paired stranding reduces electrical couplings within the cables and crosstalk effects can be effectively suppressed. The tinned copper braided screen serves as protection against external high-frequency influences (capacitive coupling). The cable can be used for fixed installation and flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms.

Technical specifications
Filter Property Value
Material PVC
Temperature range (active) -5 °C to 70 °C
Cable material copper, bright
Version data cable
Shielding shielded
Outer diameter 6.6 mm
Halogen free No
Colour gray
Cable cross-section 0.2 mm²
Temperature range (unmoved) -40 °C to 70 °C
Core insulation material PVC
Drag chain suitable No
Number of cores 8
AWG cross-section AWG 25
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
