89920 | HELUKABEL

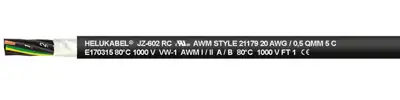

PVC control line JZ-602-RC 4 G 1.5 mm², AWG 16, shielded, black, 89920
Unit Price (€ / mtr.)
3.0940 € *
Standard delivery time from the manufacturer is: 6 Weeks
Drag chain cable, 89920, HELUKABEL
The 89920 is a PVC drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. RC = Robotics Cable.
Features
- Resistant to UV radiation
- Largely resistant to acids, alkalis, at room temperature
- Low adhesion
- For outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | Yes | |
| Rated voltage UL/CSA | 1000 V | |
| Material | PVC | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 16 | |
| Cable material | copper, bright | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 3 kV | |
| Product type | control line | |
| Temperature range (active) | -5 °C to 80 °C | |
| Number of cores | 4 | |
| Core insulation material | PP | |
| Shielding | shielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | black | |
| Outer diameter | 7.9 mm | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
