89914 | HELUKABEL
PVC control line JZ-602-RC 12 G 1.0 mm², AWG 18, shielded, black, 89914
Unit Price (€ / mtr.)
8.6513 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

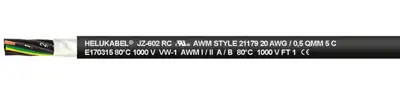

Drag chain cable, 89914, HELUKABEL
The 89914 is a PVC drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. RC = Robotics Cable.
Features
- Resistant to UV radiation
- Largely resistant to acids, alkalis, at room temperature
- Low adhesion
- For outdoor use
Technical specifications
| Core insulation material | PP | |
| Colour | black | |
| Number of cores | 12 | |
| Protective conductor available | Yes | |
| Outer diameter | 11.2 mm | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 18 | |
| Test voltage | 3 kV | |
| Rated voltage UL/CSA | 1000 V | |
| Halogen free | No | |
| Cable cross-section | 1.0 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 80 °C | |
| Conductor category | CL.6 = finest stranded |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
