83064 | HELUKABEL

PVC control line JZ-602 7 G 2.5 mm², AWG 14, unshielded, gray, 83064

Order No.: 93F5280
EAN: 4099891257101
MPN:
83064
Series: JZ-602
83064 HELUKABEL Control Cables

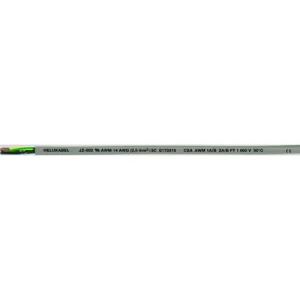

Image may differ
Unit Price (€ / mtr.)
6.9258 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
692.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
6.9258 €

Control cable, 83064, HELUKABEL

UL and CSA approved flexible control cables up to 600 V, for all machinery in tooling and plant construction, suitable for installation in dry, moist or wet environments for medium mechanical loads. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada. The thick braiding screen ensures compliance with electromagnetic requirements.

FEATURES

  • Good chemical resistance
  • Oil-resistant
  • Cadmium-free
  • Flame-retardant

Technical Data

  • Cable material: Copper, bright
  • Core insulation material: PVC
  • Color: gray
  • Conductor category: Cl.5 = fine-stranded
Technical specifications
Core insulation material PVC
Colour gray
Number of cores 7
Protective conductor available Yes
Outer diameter 11.5 mm
Drag chain suitable No
AWG cross-section AWG 14
Test voltage 3 kV
Rated voltage UL/CSA 600 V
Halogen free No
Core colour sequence black
Cable cross-section 2.5 mm²
Version control line
Material PVC
Cable material copper, bright
Shielding unshielded
Rated voltage U0 600 V
Temperature range (unmoved) -40 °C to 90 °C
Temperature range (active) -5 °C to 90 °C
Conductor category CL.5 = fine stranded
Standard number UL, CSA
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
