79825 | HELUKABEL

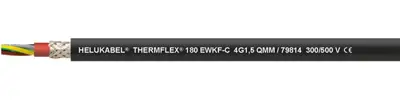

Silicone control line THERMFLEX 180 EWKF-C 4 G 4.0 mm², AWG 12, shielded, black, 79825
Unit Price (€ / mtr.)
23.0146 € *
Standard delivery time from the manufacturer is: 6 Weeks
Silicone cable, 79825, HELUKABEL
The 79825 is a halogen-free silicone cable for applications that require an increased mechanical strength as well as a higher temperature resistance. For use in dry, damp and wet rooms as well as outdoors. Also suitable for use in air conditioning and heating systems, in saunas and solariums, in foundries, in steel, cement and ceramic plants as well as in furnaces and lighting fixtures. An interference-free transmission of signals and pulse is assured by the high screening density
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 4 | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 500 V | |
| Version | control line | |
| Cable cross-section | 4.0 mm² | |
| Test voltage | 2 kV | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Protective conductor available | Yes | |
| Cable material | copper, tin-plated | |
| Material | silicone | |
| Outer diameter | 16.1 mm | |
| AWG cross-section | AWG 12 | |
| Drag chain suitable | No | |
| Core insulation material | silicone | |
| Colour | black | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -25 °C to 180 °C | |
| Shielding | shielded | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
