79808 | HELUKABEL

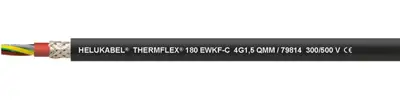

Silicone control line THERMFLEX 180 EWKF-C 2 x 1.0 mm², AWG 18, shielded, black, 79808
Unit Price (€ / mtr.)
7.7826 € *
Standard delivery time from the manufacturer is: 6 Weeks
Silicone cable, 79808, HELUKABEL
The 79808 is a halogen-free silicone cable for applications that require an increased mechanical strength as well as a higher temperature resistance. For use in dry, damp and wet rooms as well as outdoors. Also suitable for use in air conditioning and heating systems, in saunas and solariums, in foundries, in steel, cement and ceramic plants as well as in furnaces and lighting fixtures. An interference-free transmission of signals and pulse is assured by the high screening density
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | silicone | |
| Cable material | copper, tin-plated | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 2 | |
| Shielding | shielded | |
| Core insulation material | silicone | |
| Test voltage | 2 kV | |
| Cable cross-section | 1.0 mm² | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Temperature range (active) | -25 °C to 180 °C | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Outer diameter | 9.5 mm | |
| Colour | black | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
