75010 | HELUKABEL
Silicone control line THERMFLEX 180 EWKF 4 G 2.5 mm², AWG 14, unshielded, black, 75010
Unit Price (€ / mtr.)
9.4367 € *
Available in 5 Days: 700 mtr. - if ordered today

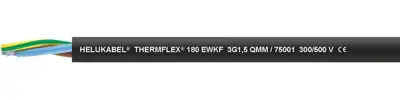

Silicone cable, 75010, HELUKABEL
The 75010 is a halogen-free silicone cable for applications that require an increased mechanical strength as well as a higher temperature resistance. For use in dry, damp and wet rooms as well as outdoors. Also suitable for use in air conditioning and heating systems, in saunas and solariums, in foundries, in steel, cement and ceramic plants as well as in furnaces and lighting fixtures.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 500 V | |
| Version | control line | |
| Colour | black | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Number of cores | 4 | |
| Conductor category | CL.5 = fine stranded | |
| Protective conductor available | Yes | |
| Core insulation material | silicone | |
| Outer diameter | 10.6 mm | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Test voltage | 2 kV | |
| Temperature range (active) | -25 °C to 180 °C | |
| AWG cross-section | AWG 14 | |
| Drag chain suitable | No | |
| Material | silicone | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage U0 | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
