75008 | HELUKABEL
Silicone control line THERMFLEX 180 EWKF 2 x 2.5 mm², AWG 14, unshielded, black, 75008
Unit Price (€ / mtr.)
6.1880 € *
Standard delivery time from the manufacturer is: 6 Weeks

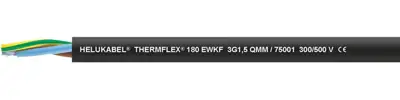

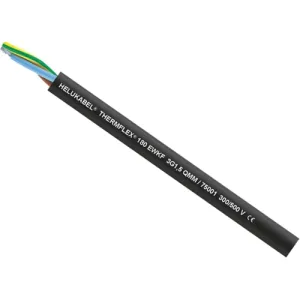

Silicone cable, 75008, HELUKABEL
The 75008 is a halogen-free silicone cable for applications that require an increased mechanical strength as well as a higher temperature resistance. For use in dry, damp and wet rooms as well as outdoors. Also suitable for use in air conditioning and heating systems, in saunas and solariums, in foundries, in steel, cement and ceramic plants as well as in furnaces and lighting fixtures.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | silicone | |
| Protective conductor available | No | |
| AWG cross-section | AWG 14 | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV | |
| Product type | control line | |
| Temperature range (active) | -25 °C to 180 °C | |
| Number of cores | 2 | |
| Core insulation material | silicone | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Colour | black | |
| Outer diameter | 8.8 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
