69780 | HELUKABEL

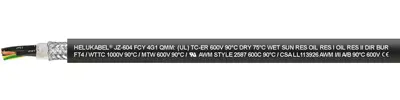

PVC control line JZ-604-FCY TC TRAY CABLE 4 G 2.5 mm², AWG 14, shielded, black, 69780
Unit Price (€ / mtr.)
8.6156 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 69780, HELUKABEL
NFPA 79 compliant, flexible control and connection cable for machinery in tool and plant constuction; suitable for installation in dry, damp and wet environments as well as outdoors. For underground installation and for open, unprotected installation from the cable rack to machines and industrial plants. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and allround large contact area of the copper braiding.
Features
- Resistant to oil, UV radiation
- For outdoor use
- Direct burial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Core insulation material | PVC | |
| Test voltage | 3 kV | |
| Cable cross-section | 2.5 mm² | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Temperature range (active) | -5 °C to 90 °C | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 11.4 mm | |
| Colour | black | |
| Halogen free | No | |
| AWG cross-section | AWG 14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
