69764 | HELUKABEL
PVC control line JZ-604-FCY TC TRAY CABLE 4 G 1.5 mm², AWG 16, shielded, black, 69764
Unit Price (€ / mtr.)
6.6521 € *
Standard delivery time from the manufacturer is: 6 Weeks

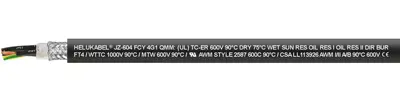

Connection cable, 69764, HELUKABEL
NFPA 79 compliant, flexible control and connection cable for machinery in tool and plant constuction; suitable for installation in dry, damp and wet environments as well as outdoors. For underground installation and for open, unprotected installation from the cable rack to machines and industrial plants. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and allround large contact area of the copper braiding.
Features
- Resistant to oil, UV radiation
- For outdoor use
- Direct burial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| AWG cross-section | AWG 16 | |
| Outer diameter | 10.2 mm | |
| Test voltage | 3 kV | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Halogen free | No | |
| Temperature range (active) | -5 °C to 90 °C | |
| Shielding | shielded | |
| Number of cores | 4 | |
| Colour | black | |
| Material | PVC | |
| Protective conductor available | Yes | |
| Cable cross-section | 1.5 mm² | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Drag chain suitable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
