69674 | HELUKABEL

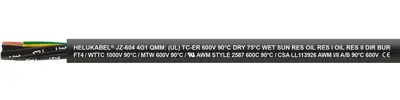

PVC control line JZ-604 TC TRAY CABLE 3 G 1.5 mm², AWG 16, unshielded, black, 69674
Unit Price (€ / mtr.)
4.1888 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 69674, HELUKABEL
NFPA 79 compliant, flexible control and connection cable for machinery in tool and plant constuction; suitable for installation in dry, damp and wet environments as well as outdoors. For underground installation and for open, unprotected installation from the cable rack to machines and industrial plants.
Features
- Resistant to oil, UV radiation
- For outdoor use
- Direct burial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 8.8 mm | |
| Colour | black | |
| Temperature range (active) | -5 °C to 90 °C | |
| Core insulation material | PVC | |
| Cable cross-section | 1.5 mm² | |
| Protective conductor available | Yes | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Version | control line | |
| Material | PVC | |
| AWG cross-section | AWG 16 | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Number of cores | 3 | |
| Test voltage | 3 kV | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
