60291 | HELUKABEL

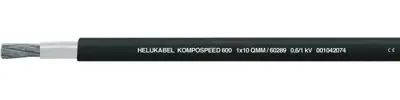

PE drag chains conductor line KOMPOSPEED 600 1 x 25 mm², unshielded, black, 60291
Unit Price (€ / mtr.)
12.9234 € *
Standard delivery time from the manufacturer is: 6 Weeks
Trailing cable, 60291, HELUKABEL
The 60291 special single core is used for permanent flexible applications in machineries, machine tools, composting appliances and sewage-treatment plants, animal stalls and greenhouses and used for permanent flexible application for movable automated machinery parts and multi-shift operation as well as in open air. This cable is installed for flexible use with free movements without tensile stress or forced movements and suitable for application in drag chains.
Features
- Very good oil resistant
- Halogen free
- Abrasion resistant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Test voltage | 3 kV | |
| Conductor category | CL.6 = finest stranded | |
| Core insulation material | TPE | |
| Material | PE | |
| Version | drag chains conductor line | |
| Temperature range (unmoved) | -40 °C to 100 °C | |
| Temperature range (active) | -30 °C to 90 °C | |
| Rated voltage U0 | 600 V | |
| Halogen free | Yes | |
| Outer diameter | 11.2 mm | |
| Drag chain suitable | Yes | |
| Colour | black | |
| Number of cores | 1 | |
| Rated voltage | 1 kV | |
| Shielding | unshielded | |
| Cable cross-section | 25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
