60289 | HELUKABEL

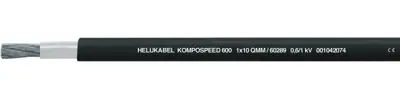

PE drag chains conductor line KOMPOSPEED 600 1 x 10 mm², unshielded, black, 60289
Unit Price (€ / mtr.)
5.593 € *
Standard delivery time from the manufacturer is: 6 Weeks
Trailing cable, 60289, HELUKABEL
The 60289 special single core is used for permanent flexible applications in machineries, machine tools, composting appliances and sewage-treatment plants, animal stalls and greenhouses and used for permanent flexible application for movable automated machinery parts and multi-shift operation as well as in open air. This cable is installed for flexible use with free movements without tensile stress or forced movements and suitable for application in drag chains.
Features
- Very good oil resistant
- Halogen free
- Abrasion resistant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | TPE | |
| Number of cores | 1 | |
| Version | drag chains conductor line | |
| Conductor category | CL.6 = finest stranded | |
| Temperature range (active) | -30 °C to 90 °C | |
| Test voltage | 3 kV | |
| Halogen free | Yes | |
| Cable cross-section | 10 mm² | |
| Rated voltage | 1 kV | |
| Material | PE | |
| Temperature range (unmoved) | -40 °C to 100 °C | |
| Cable material | copper, tin-plated | |
| Colour | black | |
| Rated voltage U0 | 600 V | |
| Outer diameter | 8.4 mm | |
| Drag chain suitable | Yes | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
