60217 | HELUKABEL

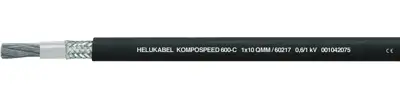

PE drag chain line KOMPOSPEED 600-C 1 x 10 mm², shielded, black, 60217
Unit Price (€ / mtr.)
10.5077 € *
Standard delivery time from the manufacturer is: 6 Weeks
Trailing cable, 60217, HELUKABEL
The 60217 special single core is used for permanent flexible applications in machineries, machine tools, composting appliances and sewage-treatment plants, animal stalls and greenhouses and used for permanent flexible application for movable automated machinery parts and multi-shift operation as well as in open air. This cable is installed for flexible use with free movements without tensile stress or forced movements and suitable for application in drag chains.
Features
- Very good oil resistant
- Halogen free
- Abrasion resistant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Core insulation material | TPE | |
| Temperature range (active) | -30 °C to 90 °C | |
| Drag chain suitable | Yes | |
| Rated voltage | 1 kV | |
| Halogen free | Yes | |
| Cable cross-section | 10 mm² | |
| Temperature range (unmoved) | -40 °C to 100 °C | |
| Number of cores | 1 | |
| Outer diameter | 9.1 mm | |
| Material | PE | |
| Test voltage | 3 kV | |
| Product type | drag chain line | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Conductor category | CL.6 = finest stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
