52037 | HELUKABEL

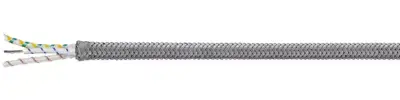

Glass silk connection cable HELUTHERM 400-MULTI-ES 3 G 1.5 mm², AWG 16, white, 52037
Unit Price (€ / mtr.)
21.4081 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connecting cable, 52037, HELUKABEL
Control and connection cable for applications with extremely high connection and ambient temperatures, e.g. in metallurgical, steel and rolling mills, foundries, glass and ceramics factories, furnace and power plant construction, thermoplastic forming; use only in dry environments.
Features
- Halogen-free
- Asbestos-free
- Cadmium-free
Technical specifications
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| Test voltage | 2 kV | |
| Temperature range (unmoved) | -60 °C to 400 °C | |
| Rated voltage U0 | 300 V | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Cable material | copper, nickel-plated | |
| AWG cross-section | AWG 16 | |
| Core insulation material | glass silk | |
| Outer diameter | 8.5 mm | |
| Colour | white | |
| Cable cross-section | 1.5 mm² | |
| Material | glass silk | |
| Version | connection line | |
| Drag chain suitable | No |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
