51760 | HELUKABEL

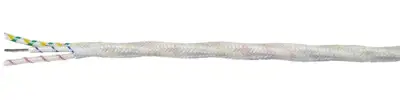

Glass silk connection cable HELUTHERM 400-MULTI 3 G 1.5 mm², AWG 16, white, 51760
Unit Price (€ / mtr.)
20.9083 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connecting cable, 51760, HELUKABEL
Control and connection cable for applications with extremely high connection and ambient temperatures, e.g. in metallurgical, steel and rolling mills, foundries, glass and ceramics factories, furnace and power plant construction, thermoplastic forming; use only in dry environments.
Features
- Halogen-free
- Asbestos-free
- Cadmium-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.5 mm² | |
| Test voltage | 2 kV | |
| Version | connection line | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 500 V | |
| Protective conductor available | Yes | |
| Outer diameter | 7.7 mm | |
| Number of cores | 3 | |
| AWG cross-section | AWG 16 | |
| Core insulation material | glass silk | |
| Colour | white | |
| Halogen free | Yes | |
| Material | glass silk | |
| Temperature range (unmoved) | -60 °C to 400 °C | |
| Cable material | copper, nickel-plated | |
| Drag chain suitable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
