51753 | HELUKABEL

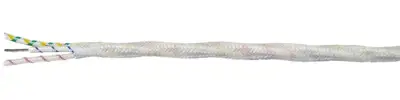

Glass silk connection cable HELUTHERM 400-MULTI 2 x 1.0 mm², AWG 18, white, 51753
Unit Price (€ / mtr.)
7.6041 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connecting cable, 51753, HELUKABEL
Control and connection cable for applications with extremely high connection and ambient temperatures, e.g. in metallurgical, steel and rolling mills, foundries, glass and ceramics factories, furnace and power plant construction, thermoplastic forming; use only in dry environments.
Features
- Halogen-free
- Asbestos-free
- Cadmium-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | glass silk | |
| Cable material | copper, nickel-plated | |
| Version | connection line | |
| Number of cores | 2 | |
| Core insulation material | glass silk | |
| Test voltage | 2 kV | |
| Cable cross-section | 1.0 mm² | |
| Temperature range (unmoved) | -60 °C to 400 °C | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Outer diameter | 6.5 mm | |
| Colour | white | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
