49868 | HELUKABEL

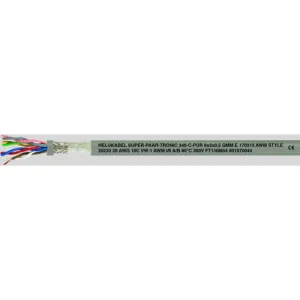

PUR control line SUPER-PAAR-TRONIC 340-C-PUR 3 x 1.0 mm², AWG 18, shielded, gray, 49868
Unit Price (€ / mtr.)
10.9480 € *
Standard delivery time from the manufacturer is: 6 Weeks
Halogen-free control cable, 49868, HELUKABEL
Stranded in pairs, these fully-screened special drag chain cables can also be used where external, high-frequency interference influences pulse transfer. They are used for permanently flexible stresses in machine and tool building, in robot technology, on constantly moving machine components and for extended use in multi-shift operations. Developed to state-of-the-art technology, these highly flexible data cable, with a cut resistant and low-adhesion PUR outer sheath guaranteeing optimal service life and extremely good cost efficiency.
FEATURES
- Halogen-free
- Good chemical resistance
- Oil-resistant
- Weather, ozone and UV-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PP
- Color: gray
- Conductor category: Cl.6 = finest-stranded
Technical specifications
| Core insulation material | PUR | |
| Colour | gray | |
| Number of cores | 3 | |
| Protective conductor available | No | |
| Outer diameter | 10.9 mm | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 18 | |
| Test voltage | 1.5 kV | |
| Halogen free | Yes | |
| Cable cross-section | 1.0 mm² | |
| Version | control line | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -30 °C to 80 °C | |
| Conductor category | CL.6 = finest stranded | |
| Standard number | UL, CSA | |
| Rated voltage | 300 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
