49644 | HELUKABEL

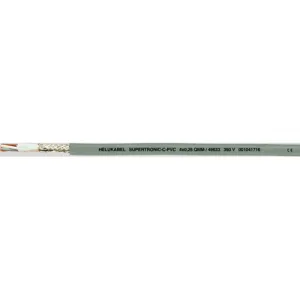

PVC control line SUPERTRONIC-C-PVC 4 x 0.34 mm², AWG 22, gray, 49644
Unit Price (€ / mtr.)
1.9278 € *
Standard delivery time from the manufacturer is: 6 Weeks
PVC Control cable, 49644, HELUKABEL
The ideal cable for use in cable trays. This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries, robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy.
FEATURES
- Good chemical resistance
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.6 = finest-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 4 | |
| Protective conductor available | No | |
| Outer diameter | 5.9 mm | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 22 | |
| Test voltage | 1.5 kV | |
| Halogen free | No | |
| Cable cross-section | 0.34 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.6 = finest stranded | |
| Rated voltage | 350 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
