43050 | HELUKABEL
PVC installation line (N)YM(St)-J 3 G 1.5 mm², AWG 16, shielded, gray, 43050
Unit Price (€ / mtr.)
1.7850 € *
Standard delivery time from the manufacturer is: 6 Weeks

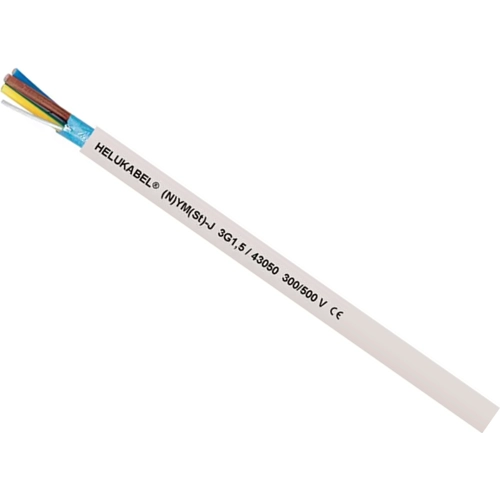

Installation cable, 43050, HELUKABEL
The 43050 is a PVC installation cable with static screen, designed for the effective limitation of electromagnetic interference fields. The design proves to be advantageous for installation in the computer sector, in hospitals, in industrial control rooms with interference-sensitive devices as well as in living areas of people that are extremely sensitive to radiation. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Colour | gray | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Cable cross-section | 1.5 mm² | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Number of cores | 3 | |
| Outer diameter | 10.5 mm | |
| Material | PVC | |
| Test voltage | 2 kV | |
| Product type | installation line | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Conductor category | CL.1 = stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
