37270 | HELUKABEL

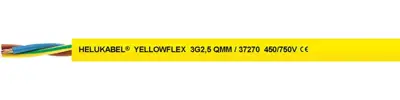

Rubber connection cable YELLOWFLEX 3 G 2.5 mm², AWG 14, unshielded, yellow, 37270

Order No.: 93F7049
EAN: 4060892167218
MPN:
37270
Series: YELLOWFLEX
37270 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
4.2483 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
424.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
4.2483 €

Rubber connection cable, 37270, HELUKABEL

The 37270 is a robust rubber cable for applications that require extreme flexibility and where cables are subject to high mechanical loads. For use in dry, damp and wet rooms as well as outdoors such as in metallurgical plants and rolling mills, in heating and air conditioning technology, in the bottling industry, in machinery and plant engineering, in the chemical industry as well as in the craft and hobby sector. The yellow colour of the sheath is used for safety. When laid in pipes or in similar closed systems, the use of the cable is permitted up to and including 1000 V AC or 750 V DC against earth.

Technical specifications
Filter Property Value
Material rubber
Cable material copper, bright
Version control line
Conductor category CL.5 = fine stranded
Number of cores 3
Shielding unshielded
Core insulation material rubber
Test voltage 2.5 kV
Cable cross-section 2.5 mm²
Temperature range (unmoved) -30 °C to 60 °C
Temperature range (active) -25 °C to 60 °C
Rated voltage U0 450 V
Drag chain suitable No
Protective conductor available Yes
Outer diameter 14 mm
Colour yellow
Rated voltage 750 V
Halogen free No
AWG cross-section AWG 14
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
