37263 | HELUKABEL

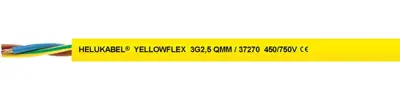

Rubber connection cable YELLOWFLEX 2 x 1.5 mm², AWG 16, unshielded, yellow, 37263

Order No.: 93F7046
EAN: 4060892167140
MPN:
37263
Series: YELLOWFLEX
37263 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
2.6775 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
267.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
2.6775 €

Rubber connection cable, 37263, HELUKABEL

The 37263 is a robust rubber cable for applications that require extreme flexibility and where cables are subject to high mechanical loads. For use in dry, damp and wet rooms as well as outdoors such as in metallurgical plants and rolling mills, in heating and air conditioning technology, in the bottling industry, in machinery and plant engineering, in the chemical industry as well as in the craft and hobby sector. The yellow colour of the sheath is used for safety. When laid in pipes or in similar closed systems, the use of the cable is permitted up to and including 1000 V AC or 750 V DC against earth.

Technical specifications
Core insulation material rubber
Colour yellow
Number of cores 2
Protective conductor available No
Outer diameter 11 mm
Drag chain suitable No
AWG cross-section AWG 16
Test voltage 2.5 kV
Halogen free No
Cable cross-section 1.5 mm²
Version control line
Material rubber
Cable material copper, bright
Shielding unshielded
Rated voltage U0 450 V
Temperature range (unmoved) -30 °C to 60 °C
Temperature range (active) -25 °C to 60 °C
Conductor category CL.5 = fine stranded
Rated voltage 750 V
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
