37136 | HELUKABEL
EPR submersible pump line Tauchflex-R 4 G 2.5 mm², AWG 14, unshielded, blue, 37136
Unit Price (€ / mtr.)
10.1388 € *
Standard delivery time from the manufacturer is: 6 Weeks

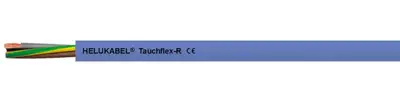

Submersible pump cable, 37136, HELUKABEL
Tauchflex-R is a special cable for use as a connecting and control cable for submersible motor pumps, underwater floodlights, floating switch and has proven its worth for constant use in drinking water, process water and service water up to an immersion depth of 300 m. Tauchflex-R can also be installed for use in dry, damp and humid areas as well as in the open air.
Features
- Good insulation properties when submerged in water
- Minimal weight gain under water
- The mechanical stability of the insulation materials remains constant even when submerged
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | EPR | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 14 | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2.5 kV | |
| Product type | submersible pump line | |
| Temperature range (active) | -25 °C to 80 °C | |
| Number of cores | 4 | |
| Core insulation material | EPR | |
| Shielding | unshielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | blue | |
| Outer diameter | 12.3 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
