37080 | HELUKABEL

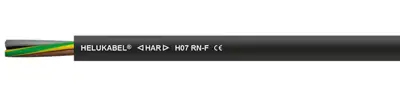

Rubber connection cable H07RN-F 3 x 1.5 mm², AWG 16, unshielded, black, 37080
Unit Price (€ / mtr.)
1.9516 € *
Available: 100 mtr.
Available in 5 Days: 1,100 mtr. - if ordered today
Rubber connection cable, 37080, HELUKABEL
The 37080 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | rubber | |
| Cable material | copper, bright | |
| Version | connection line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Core insulation material | rubber | |
| Test voltage | 2.5 kV | |
| Cable cross-section | 1.5 mm² | |
| Temperature range (unmoved) | -30 °C to 60 °C | |
| Temperature range (active) | -25 °C to 60 °C | |
| Rated voltage U0 | 450 V | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Outer diameter | 11.9 mm | |
| Colour | black | |
| Rated voltage | 750 V | |
| Halogen free | No | |
| AWG cross-section | AWG 16 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
