37063 | HELUKABEL

Rubber connection cable H07RN-F 5 G 4.0 mm², AWG 12, unshielded, black, 37063

Order No.: 93F6532
EAN: 4060892164521
MPN:
37063
Series: H07RN-F
37063 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
6.4379 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
643.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
6.4379 €

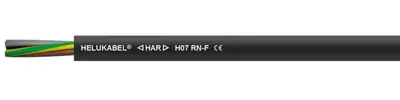

Rubber connection cable, 37063, HELUKABEL

The 37063 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.

Features

  • Resistant to: oil, weathering effects
  • Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
  • Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
Filter Property Value
Number of cores 5
Colour black
Cable material copper, bright
Core insulation material rubber
Drag chain suitable No
Test voltage 2.5 kV
Cable cross-section 4.0 mm²
Material rubber
Shielding unshielded
Protective conductor available Yes
Outer diameter 19.9 mm
Temperature range (active) -25 °C to 60 °C
Temperature range (unmoved) -30 °C to 60 °C
Conductor category CL.5 = fine stranded
AWG cross-section AWG 12
Rated voltage 750 V
Halogen free No
Version connection line
Rated voltage U0 450 V
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
