37062 | HELUKABEL

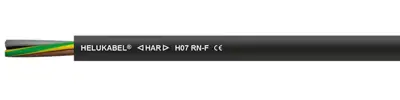

Rubber connection cable H07RN-F 5 G 2.5 mm², AWG 14, unshielded, black, 37062
Unit Price (€ / mtr.)
4.2721 € *
Available: 100 mtr.
Available in 5 Days: 1,800 mtr. - if ordered today
Rubber connection cable, 37062, HELUKABEL
The 37062 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Test voltage | 2.5 kV | |
| Cable cross-section | 2.5 mm² | |
| Outer diameter | 17 mm | |
| Version | connection line | |
| Rated voltage U0 | 450 V | |
| Material | rubber | |
| Temperature range (active) | -25 °C to 60 °C | |
| AWG cross-section | AWG 14 | |
| Number of cores | 5 | |
| Protective conductor available | Yes | |
| Rated voltage | 750 V | |
| Temperature range (unmoved) | -30 °C to 60 °C | |
| Shielding | unshielded | |
| Core insulation material | rubber | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
